2D Floor Plans

Our Floor Plans are created to scale and taken directly from the approved architectural plans.

Whole floors of apartment, townhouse or unit developments can be created to show integration with site.

Properties with impressive grounds can be landscaped and integrated with overlays or actual plans.

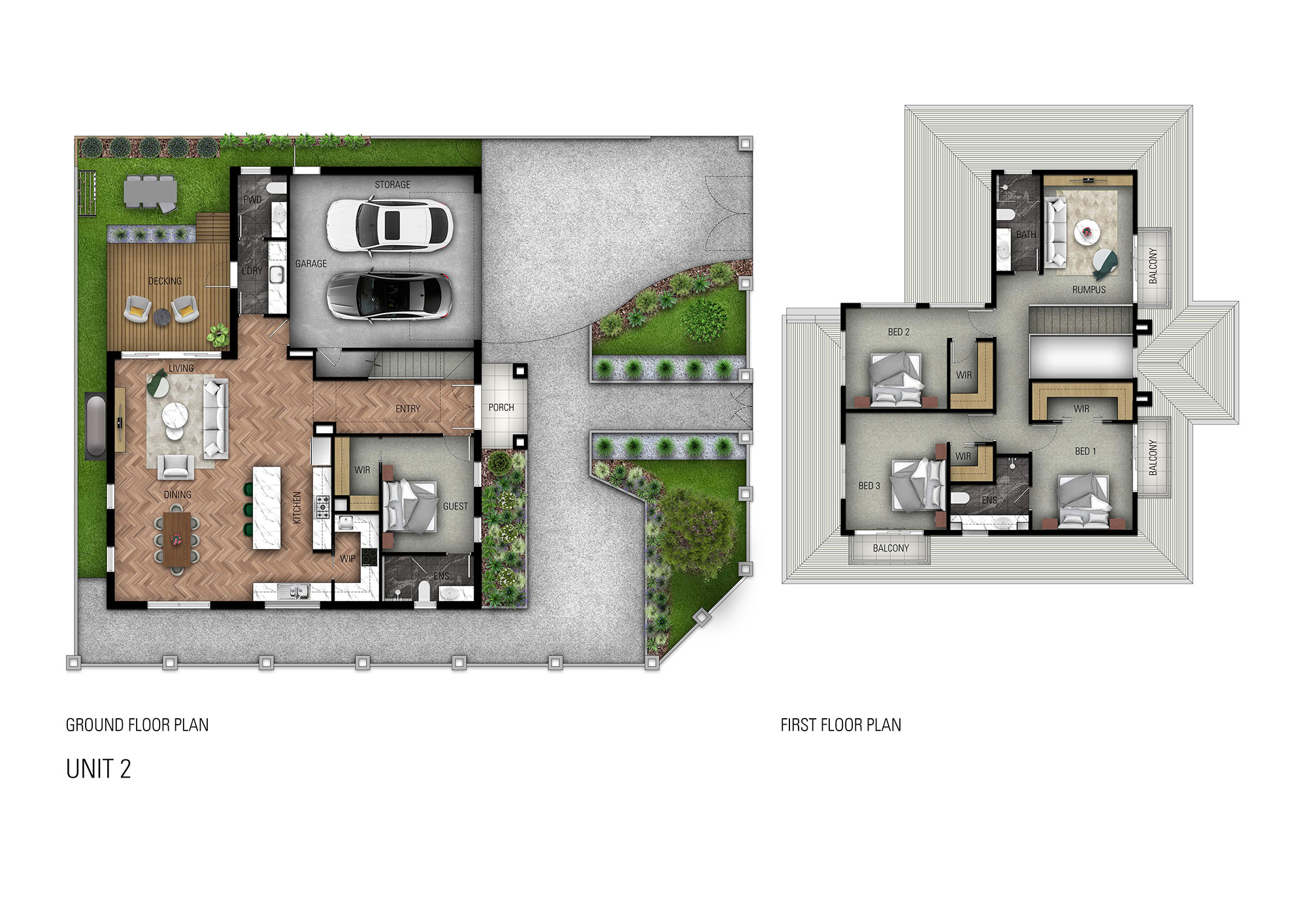

Colour Floorplans S18588 22 Combarton St, Box Hil Unit 2 Issue A 21.03.29

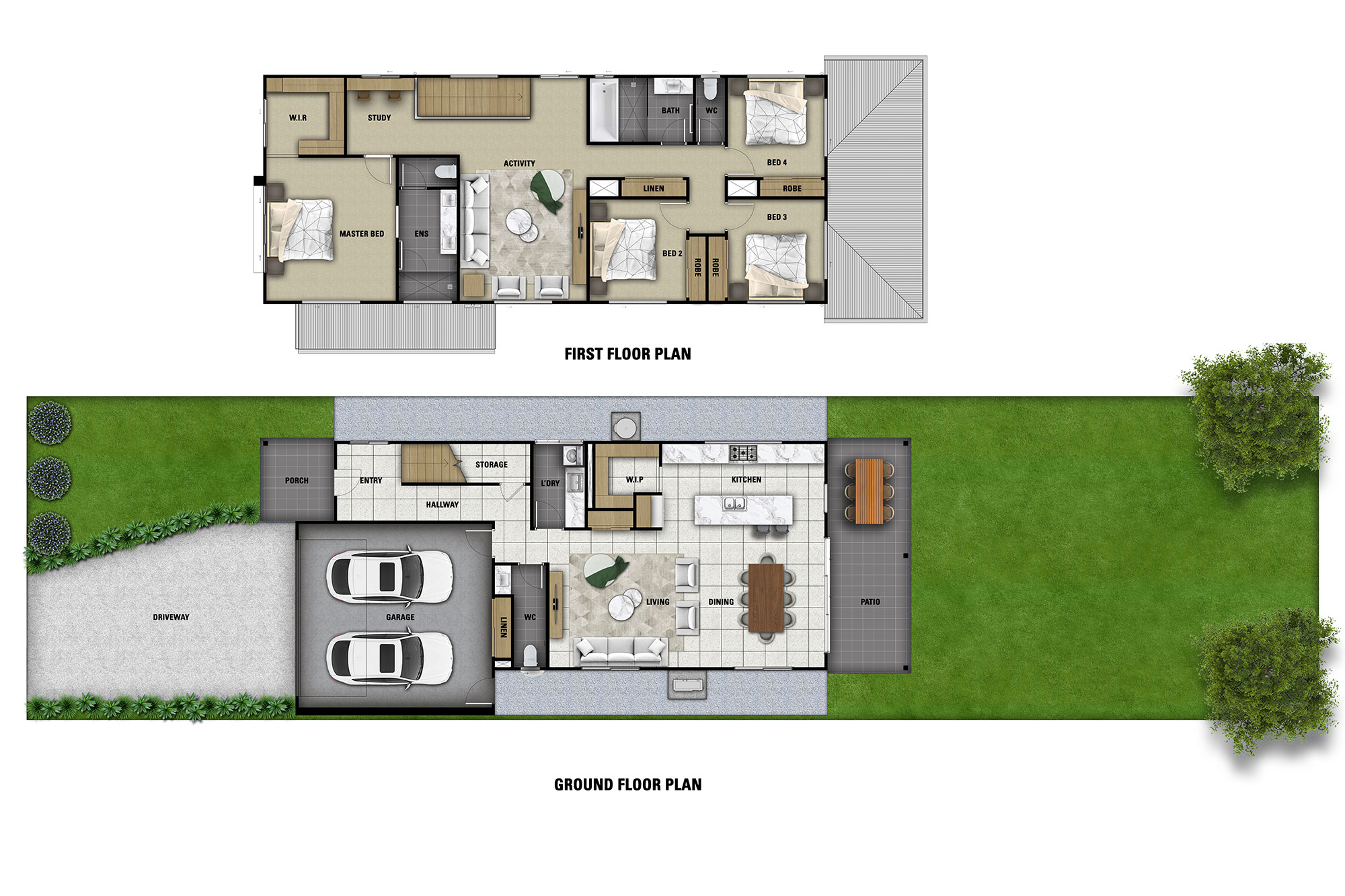

Colour Floorplan F30133 S30133 30 Enright St, Oxley & 30a Enright St, Oxley 30

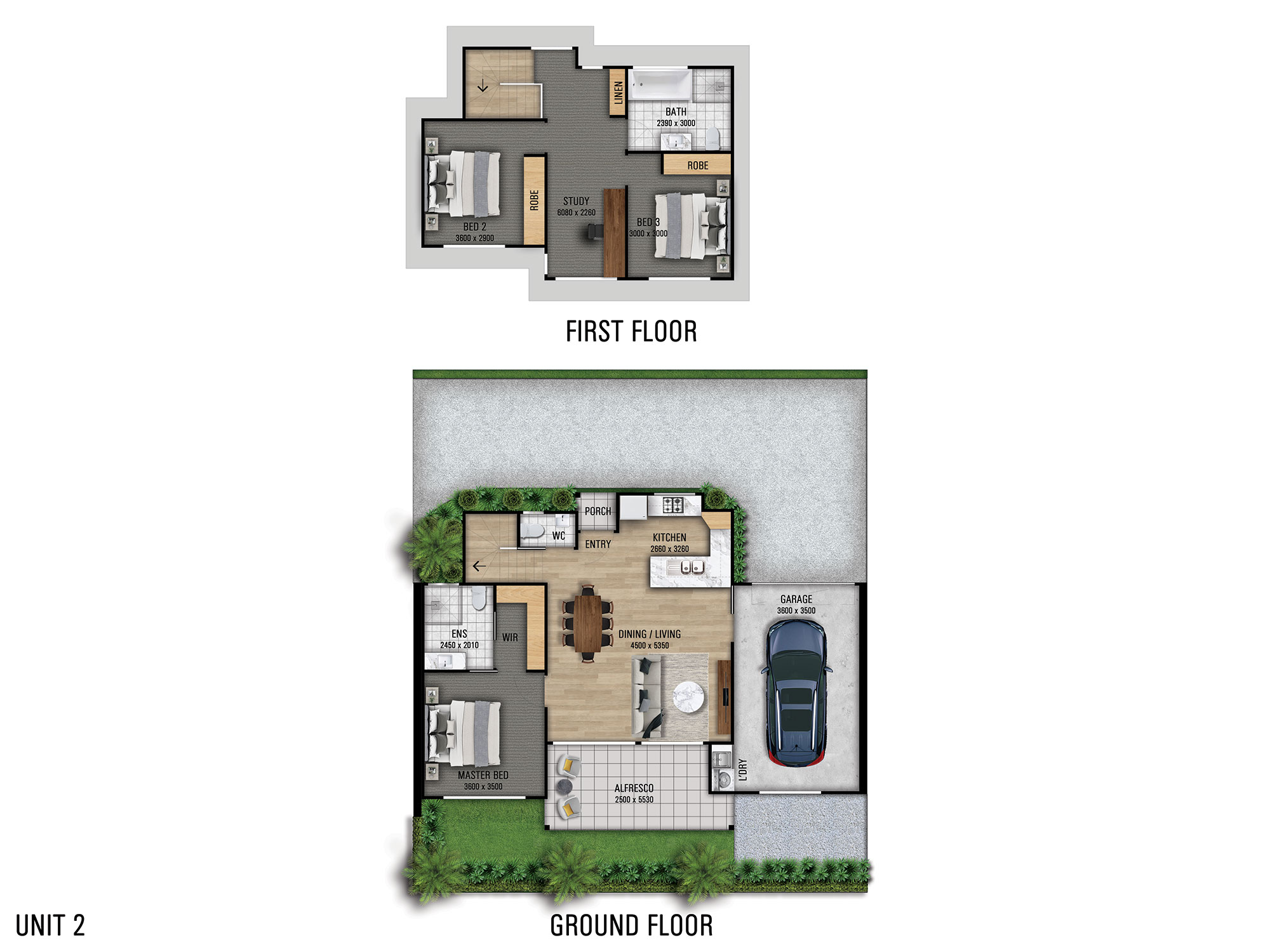

Colour Floorplan 30379 S30379 21 Warrah St, Ettalong Beach (floor Plans)unit 2

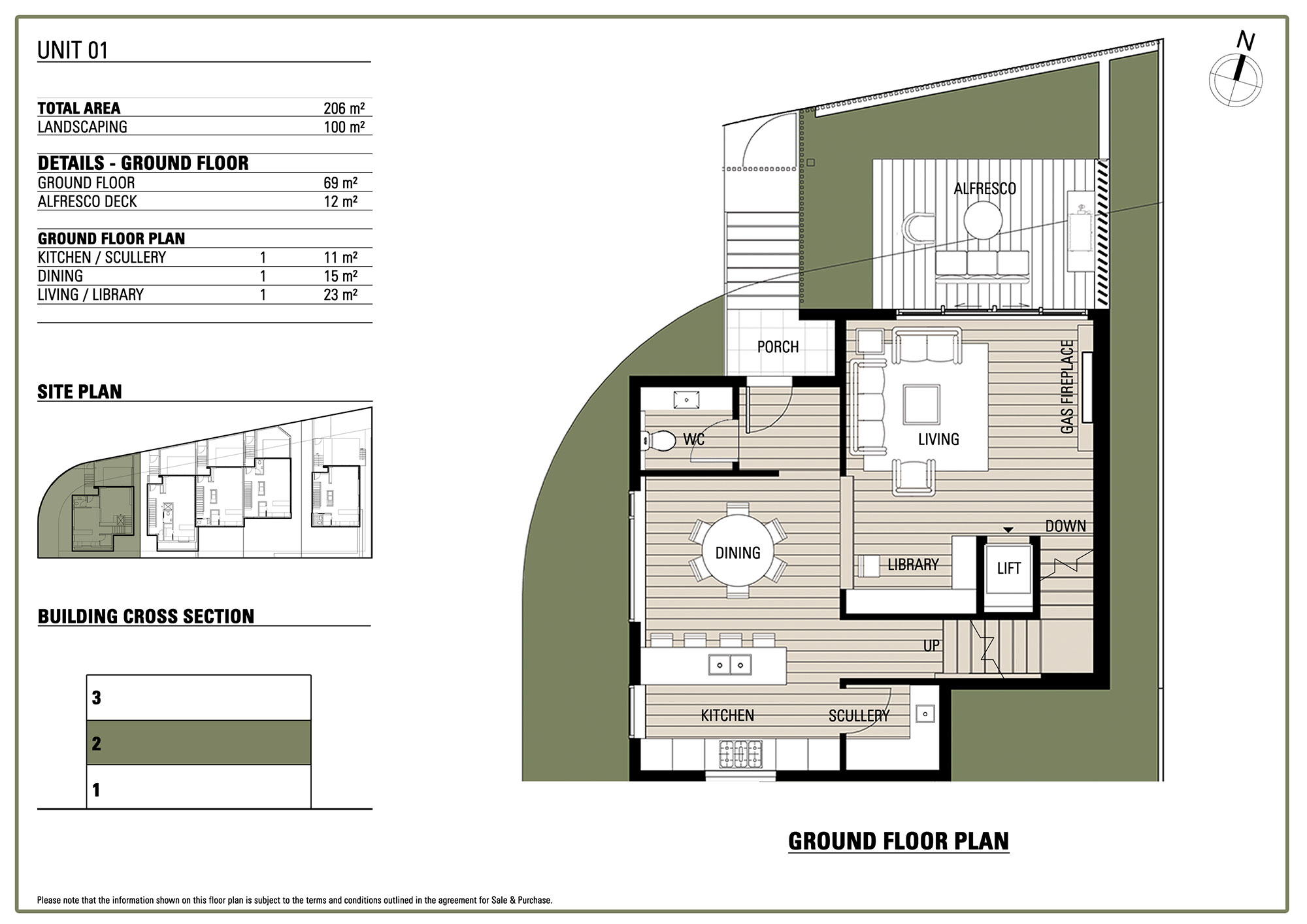

Floorplans 5716 1 & 1a Siota Cres, Kohimarama Plans.jpg Unit 01 Gf

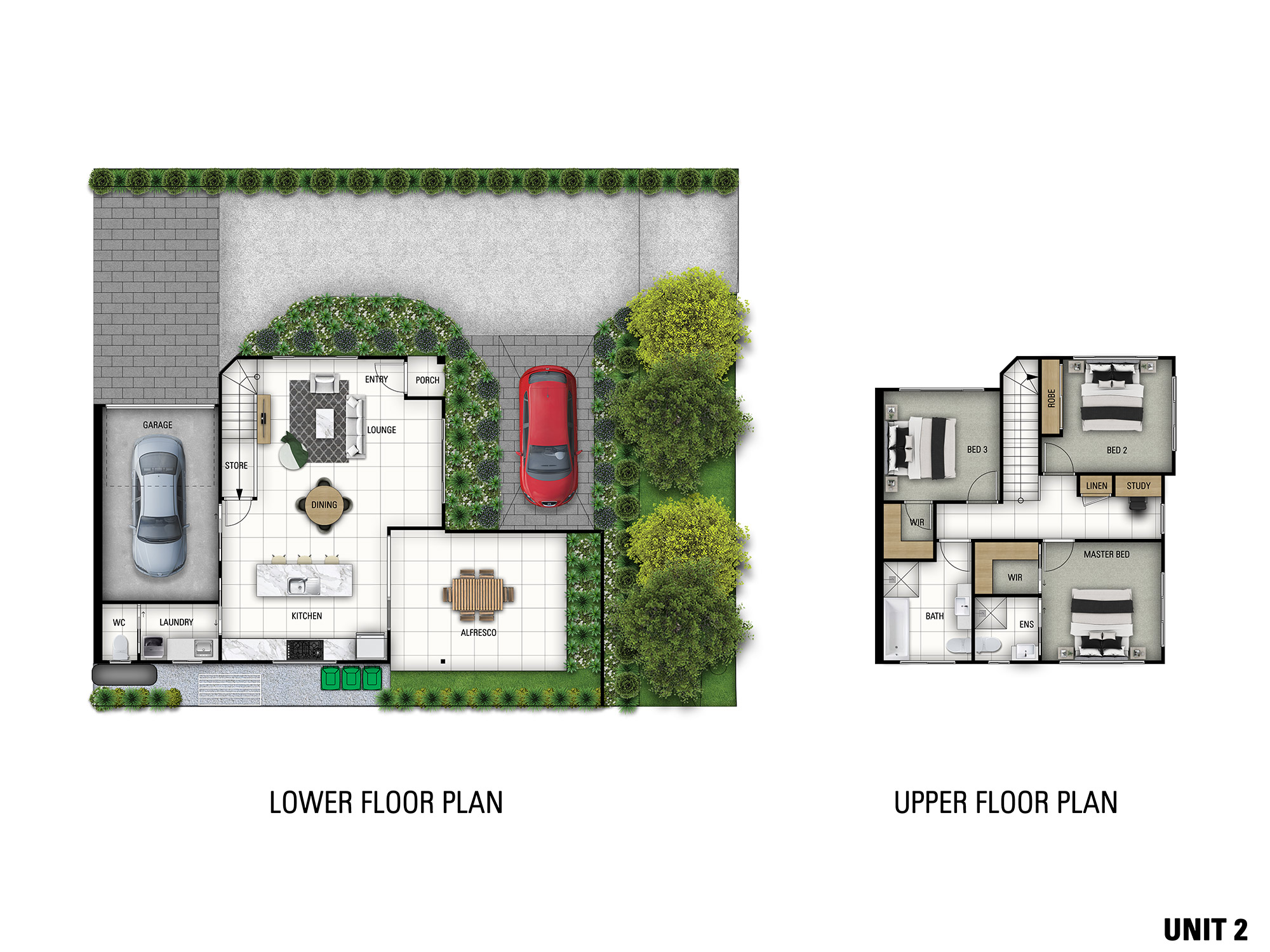

Sf30520 S30520 12 Kingsley Ave, Albion Park (floor Plans) Unit 1

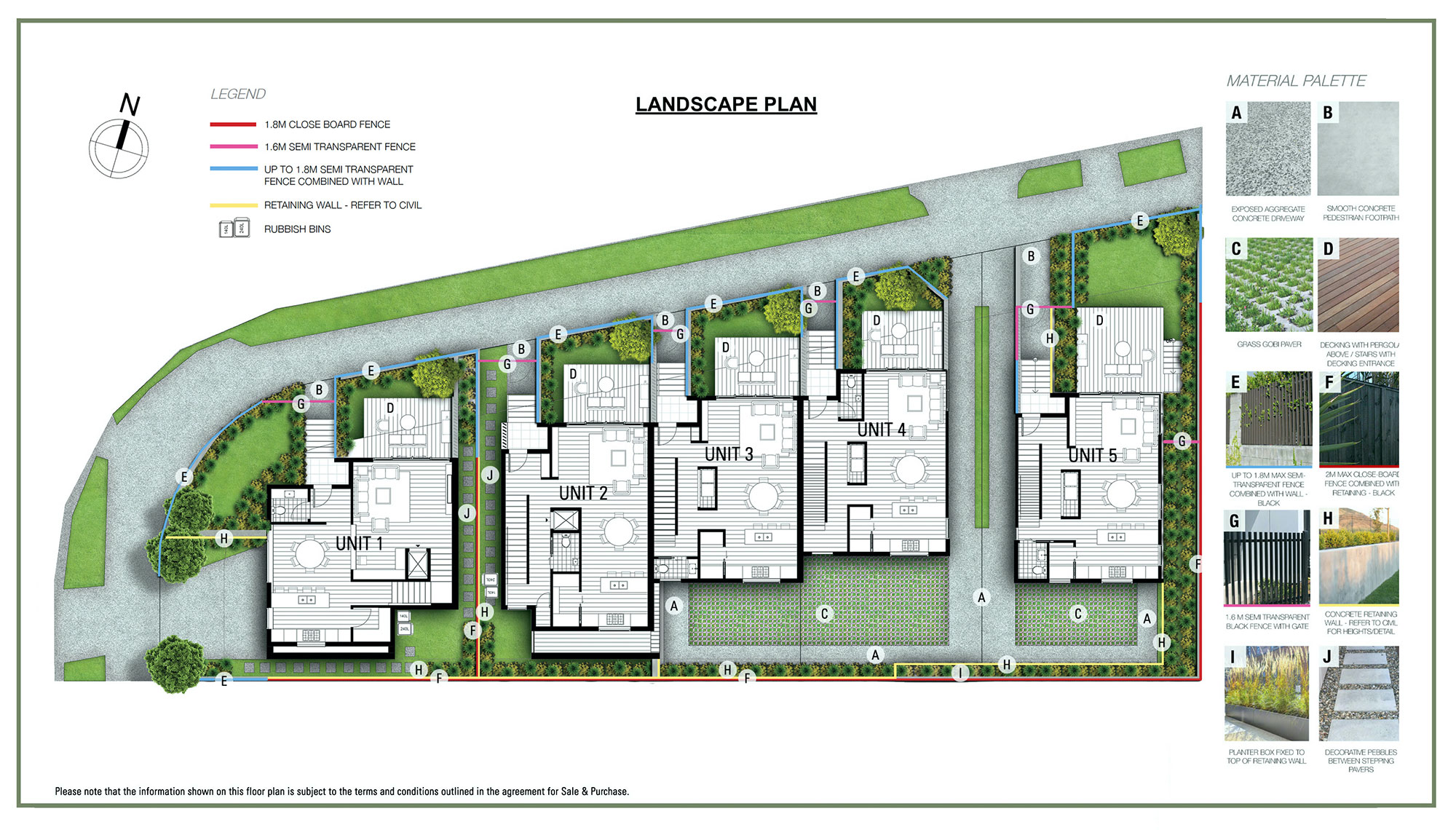

Landscape plan with multiple units layout.

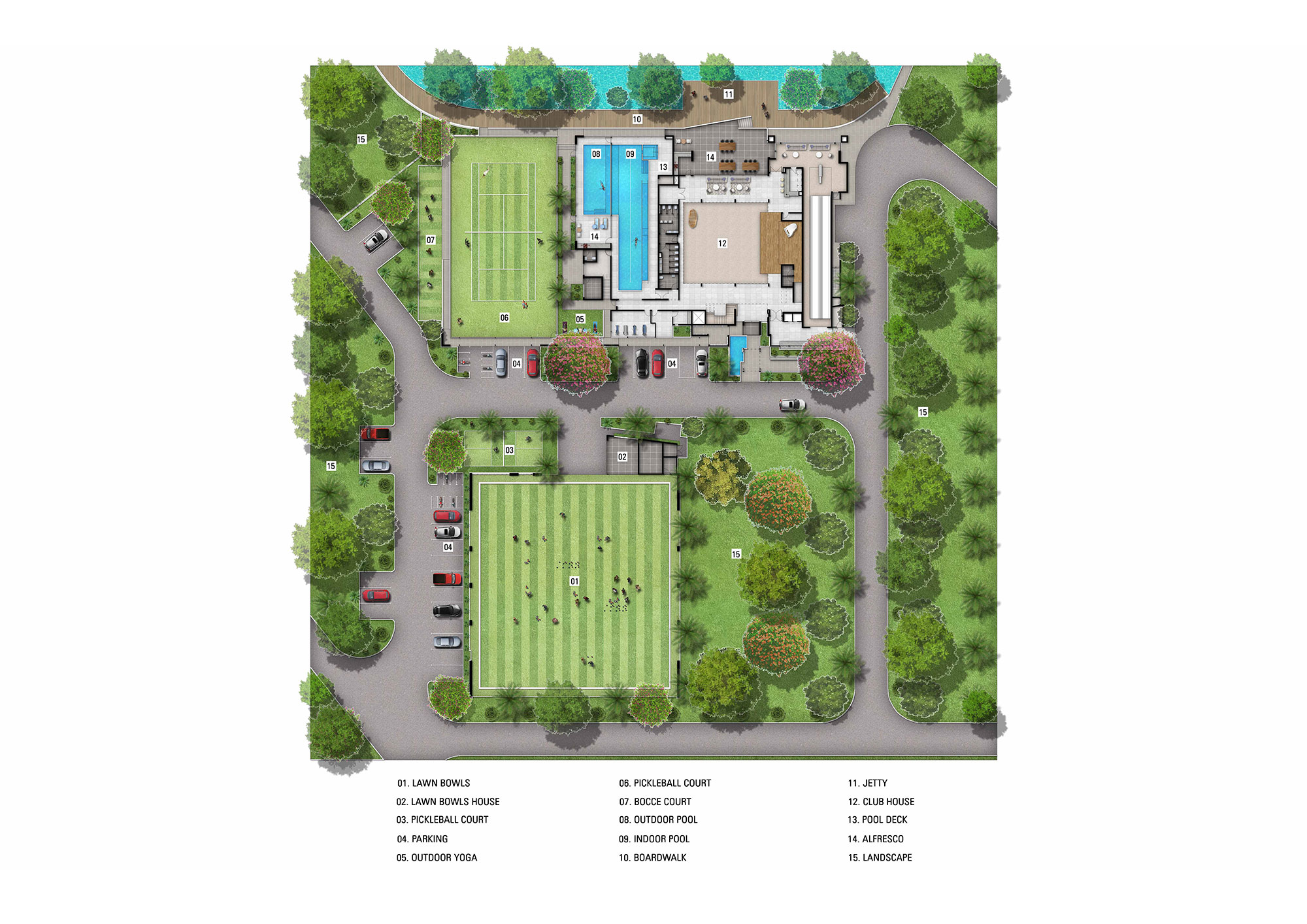

Aerial view of landscaped property layout.

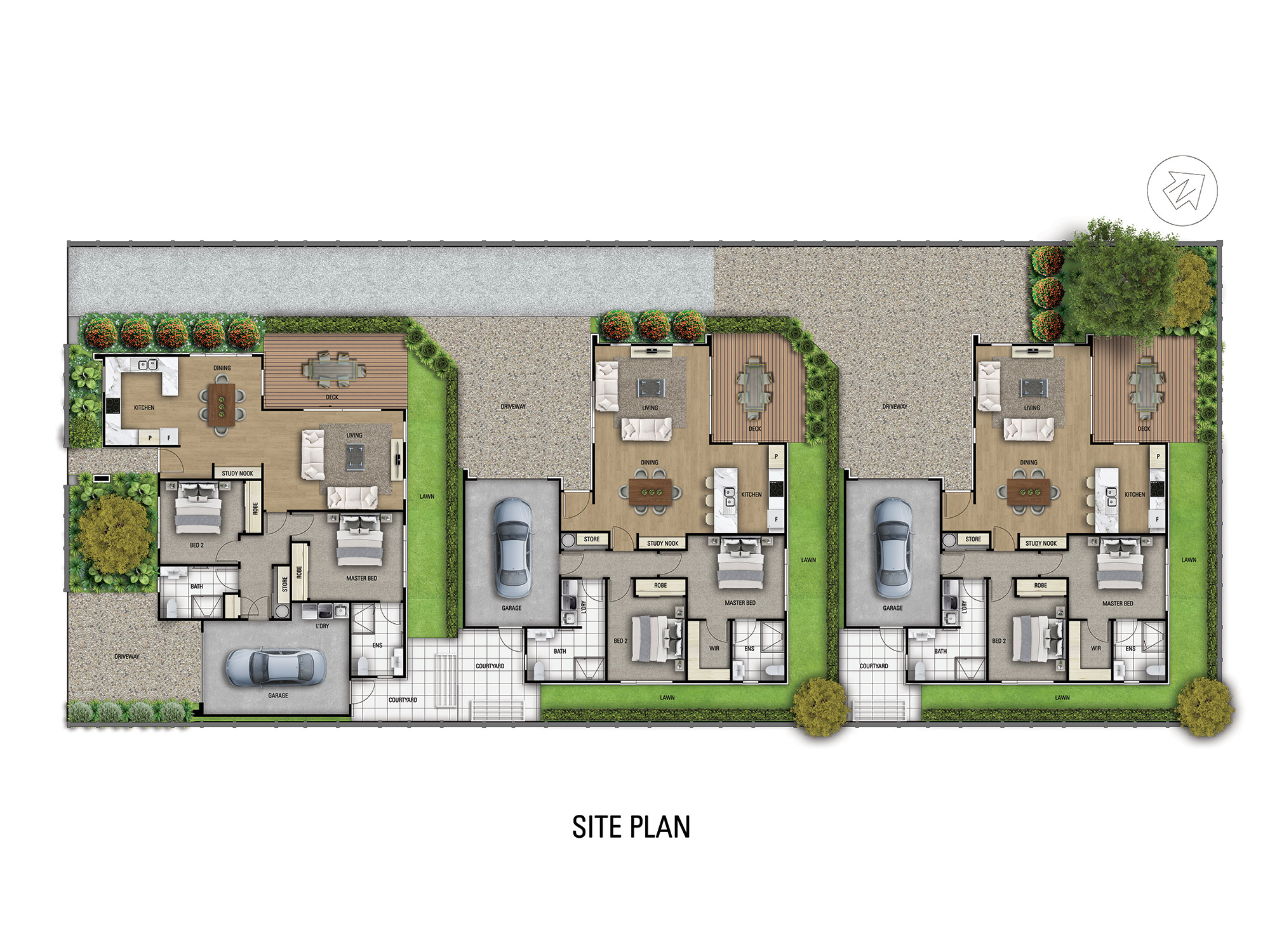

Ssnz5831 5 Pateke St, Nelson (floor Plans)

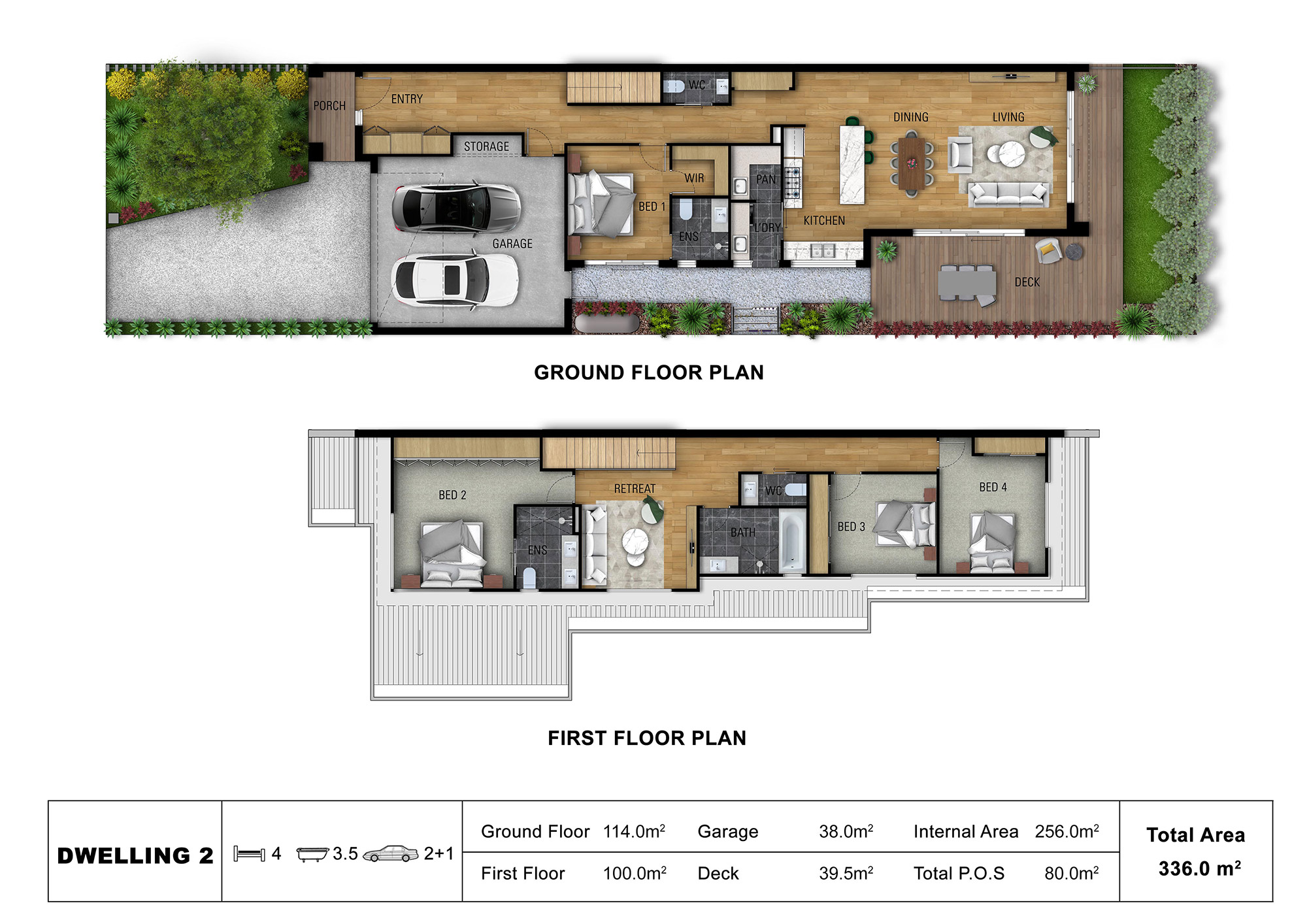

S17167a Jackson Road Additionals Dwelling 2 Option 2

Color Floor Plans show scale layouts of houses and apartments presenting space in a full material and color presentation.

Color Floor Plates show scale layouts of whole floors of apartment projects including individual apartments or units, material and color presentation.

Color Site Plans show scale layouts of ground floor Townhouses and Units in full material, landscaping and color presentation.

Color Site Plans of site only. Showing lot layout or storage / industrial in relation to vehicle and pedestrian access.

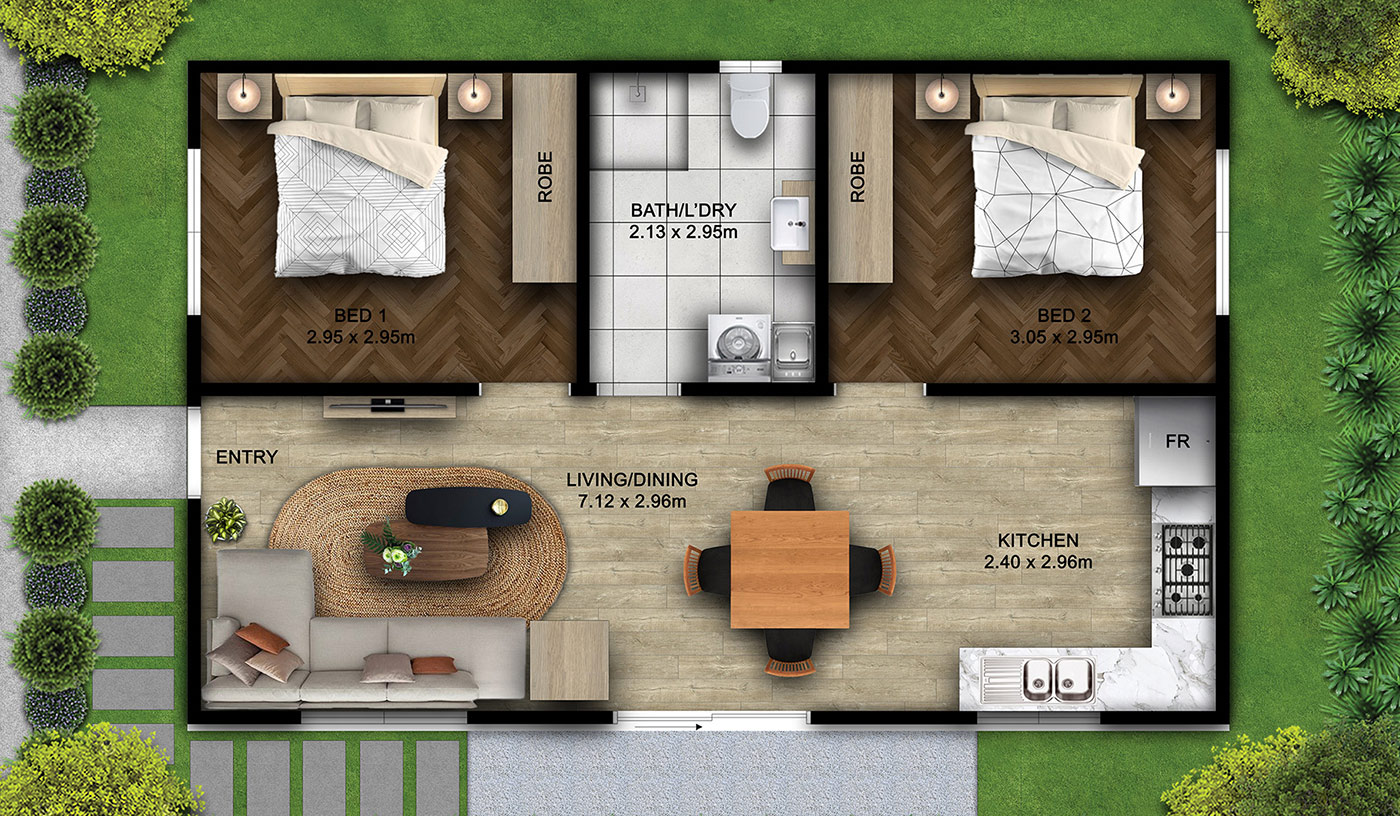

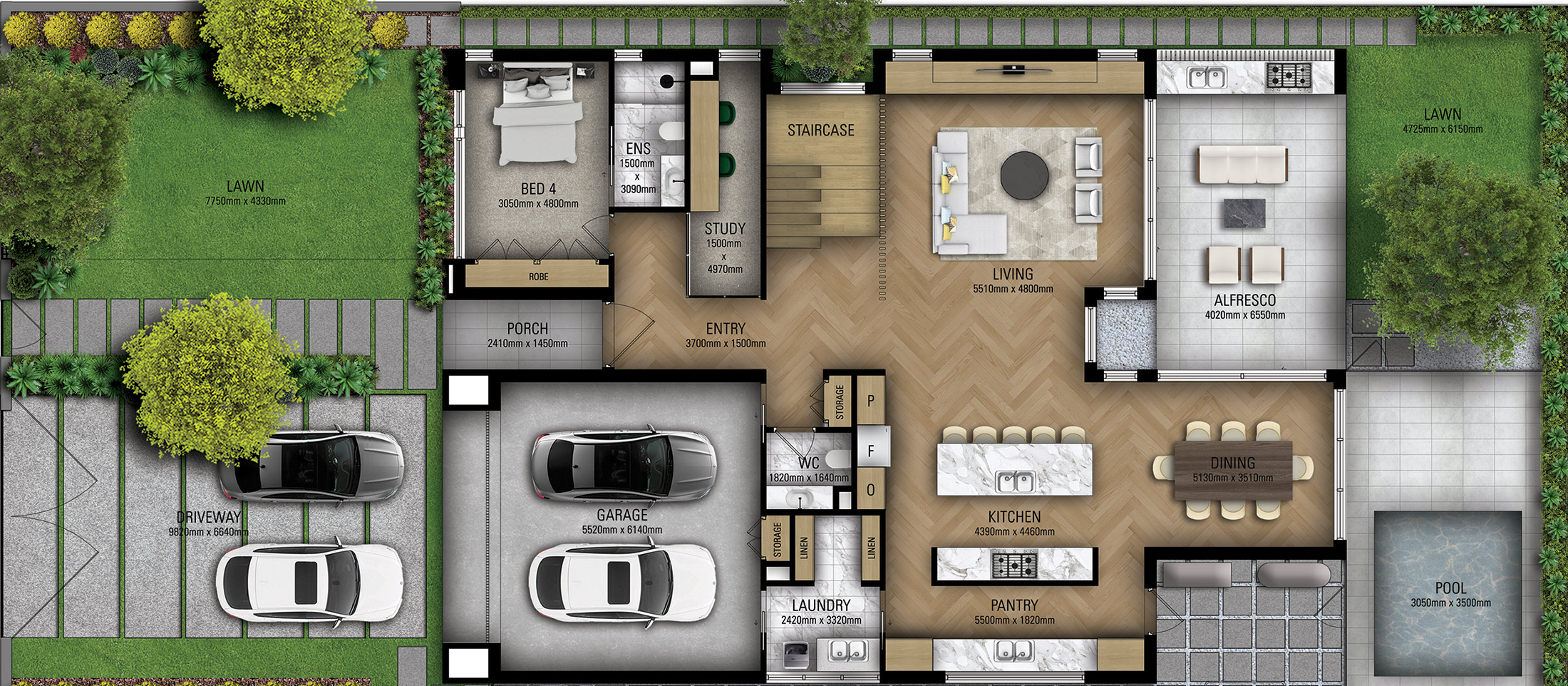

2d Floorplans Header S5 Long Open Living Design Cropped 60 Sq

2D Colour Floor Plans

2D Floor Plates

2D Site Plans

What Types of Color Floor Plans
